Modular carriage system with integrated PC for versatile pipe inspections
Product Description

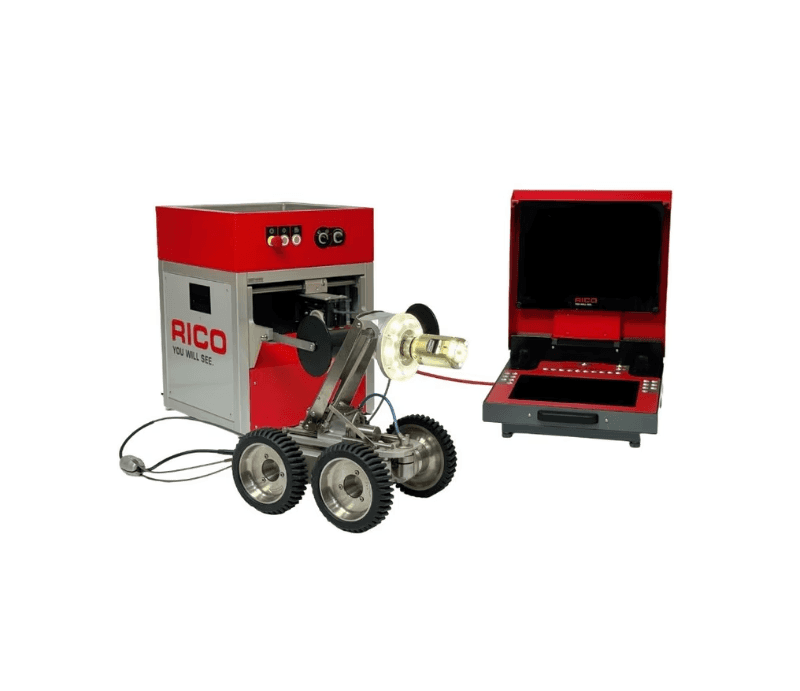

The CROSS|TOUCH sets new standards in technology, mobility, and performance for pipe inspection systems. Its modular design allows connection with all RICO cameras and carriages, making it suitable for pipe diameters starting from 100 mm up to large dimensions. The system features ergonomically arranged control elements for intuitive operation and includes a removable control unit for flexible on-site workspace configuration. Equipped with a powerful industrial PC, the CROSS|TOUCH facilitates comprehensive inspection tasks and documentation. Its lightweight aluminum cable drum, holding 300 meters of single-wire cable, ensures effortless mobility. Additionally, the system can be seamlessly integrated into a fully equipped inspection vehicle.
Product Highlights
Flexible Inspection Capabilities

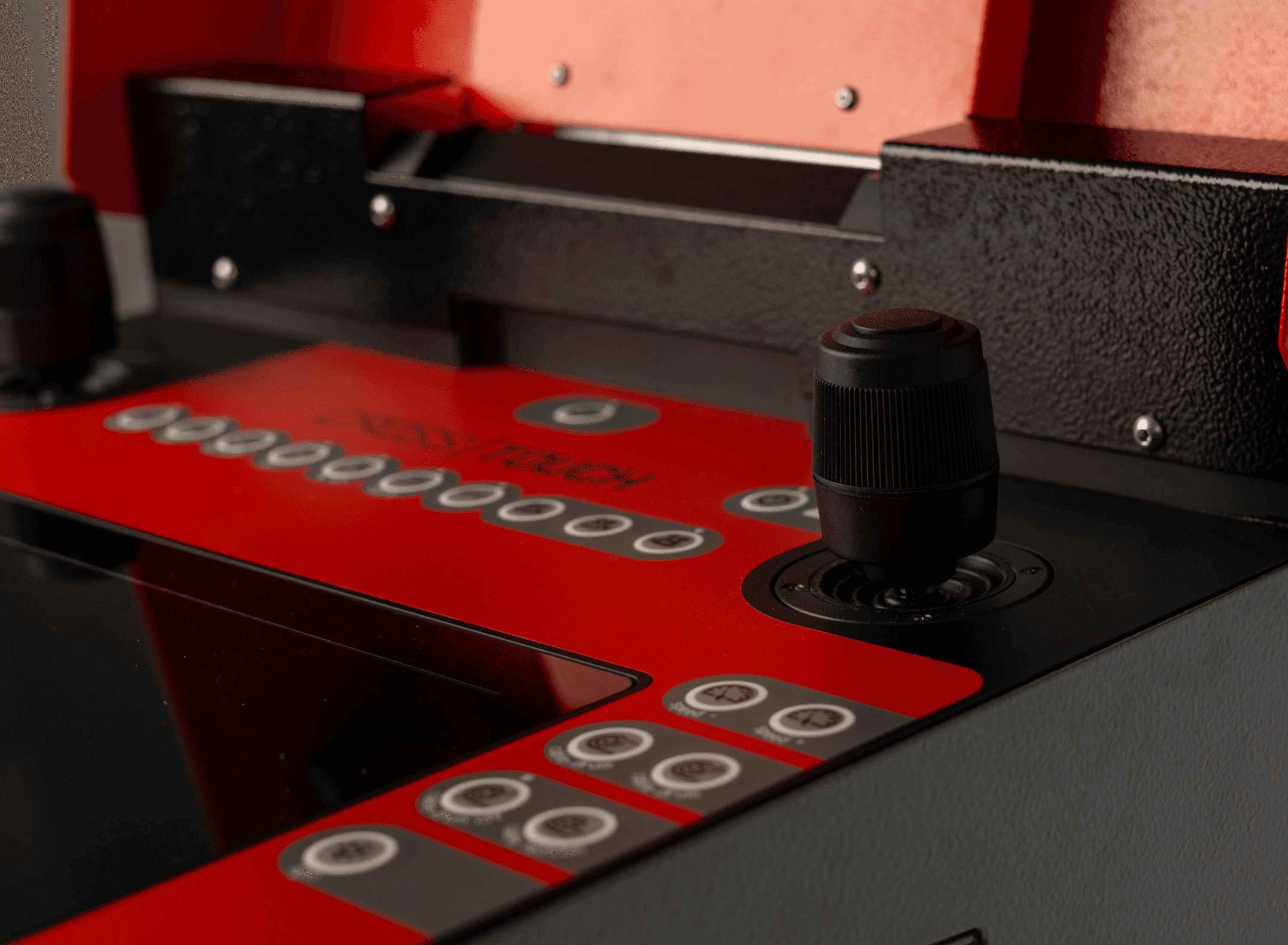

Ergonomic and Intuitive Operation
Integrated Industrial PC
PC Monitor
31 cm/12.1 inches
Capacitive multi-touch
Daylight-readable and anti-glare
Brightness: 1,000 cd/m²
Resolution: 1280 × 800 pixels
Contrast: 1,000:1
Observation Monitor
31 cm/12.1 inches
Daylight-readable and anti-glare
Brightness: 800 cd/m²
Resolution: 1024 × 768 pixels
Contrast: 900:1
Processor
Intel® Core™ i5 13th Gen.
Hard Drive
1 TB NVME SSD
RAM
16 GB
Operating System
Windows 11 Professional 64 Bit

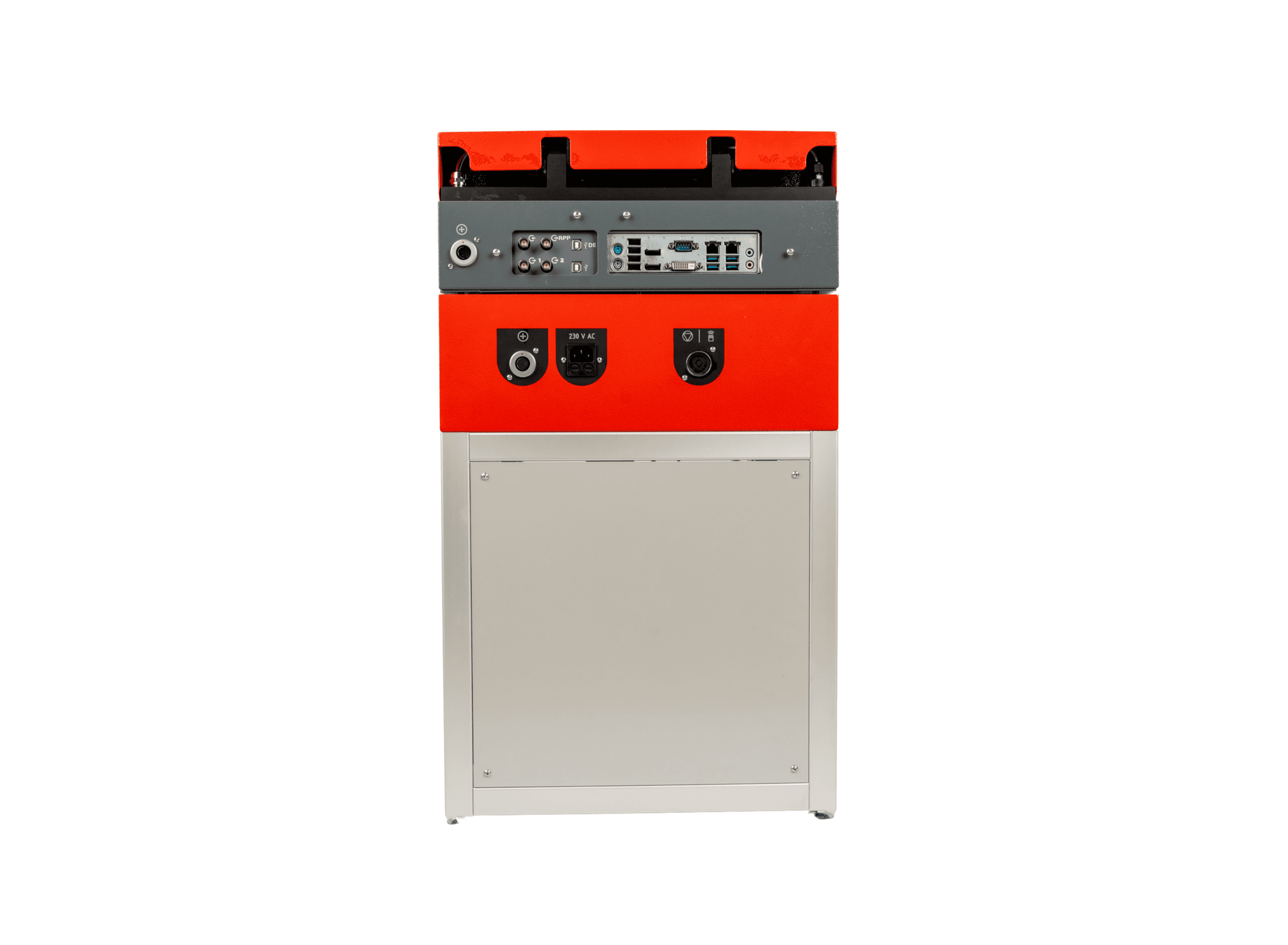

Ports
5× USB 3.2 Type A
1× USB 3.2 Type C
2x USB 2.0 Type A
1x RJ45
Video Output
3× Analogue Video
Weight
55 kg (excluding carriage and camera)
