Carriage for inspections of lateral pipes
Product Description

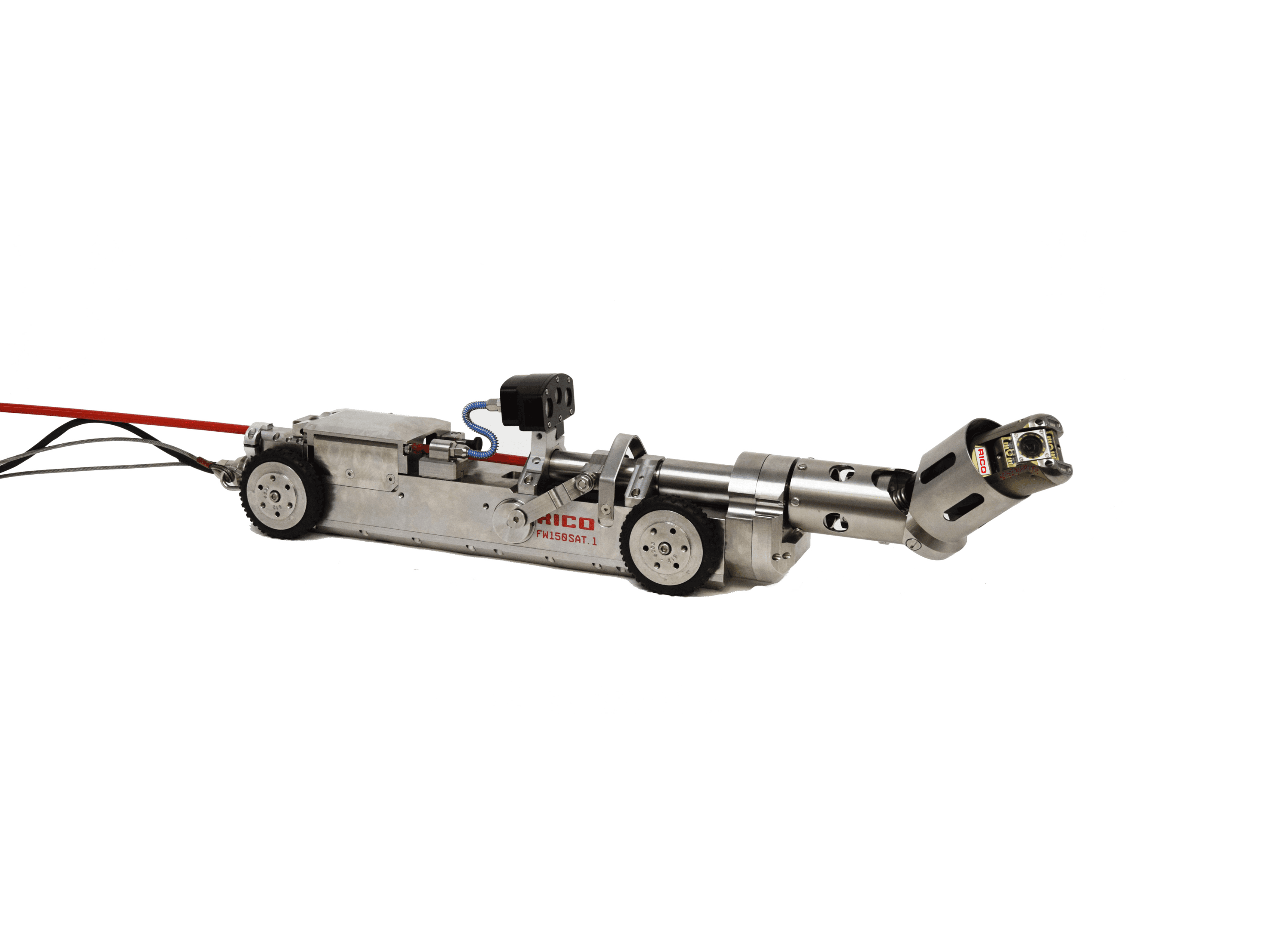

The FW150SAT.1 is a robust satellite carriage equipped with a feed unit for push cable, designed to inspect main channels starting from a diameter of 150 mm and lateral pipes from 100 mm. It features four driven, exchangeable wheels that can be changed easily without tools, thanks to a quick-release fastener. RICO offers two solutions for lateral pipe inspection: a long-distance operation up to 600 meters in the main pipe and a short-range application up to 150 meters via a stationary push rod cable reel. The carriage is suitable for use in hazardous areas (Zone 1) and is optionally available in an explosion-proof certified version. Additionally, it can be equipped with a high-pressure jetting feed option.
Product Highlights
Flexible Operation Modes
Robust and User-Friendly Design
Safety and Compliance
Applicability
Usable from Ø 150 mm in the main channel and from Ø 100 mm in lateral channels
Drive System
4 driven, replaceable wheels
Rear Camera
Integrated
Range of Operation
Long-distance application up to 500 m in the main channel
Short-distance application up to 150 m via stationary push cable reel
Satellite Camera Feed
Powerful feed for the satellite camera
Optional Features
Optional feed through high-pressure flushing
Protection Rating
IP 68
