FW150S

FW150S

Steerable camera carriage for sewer inspections from DN 150

Product Description

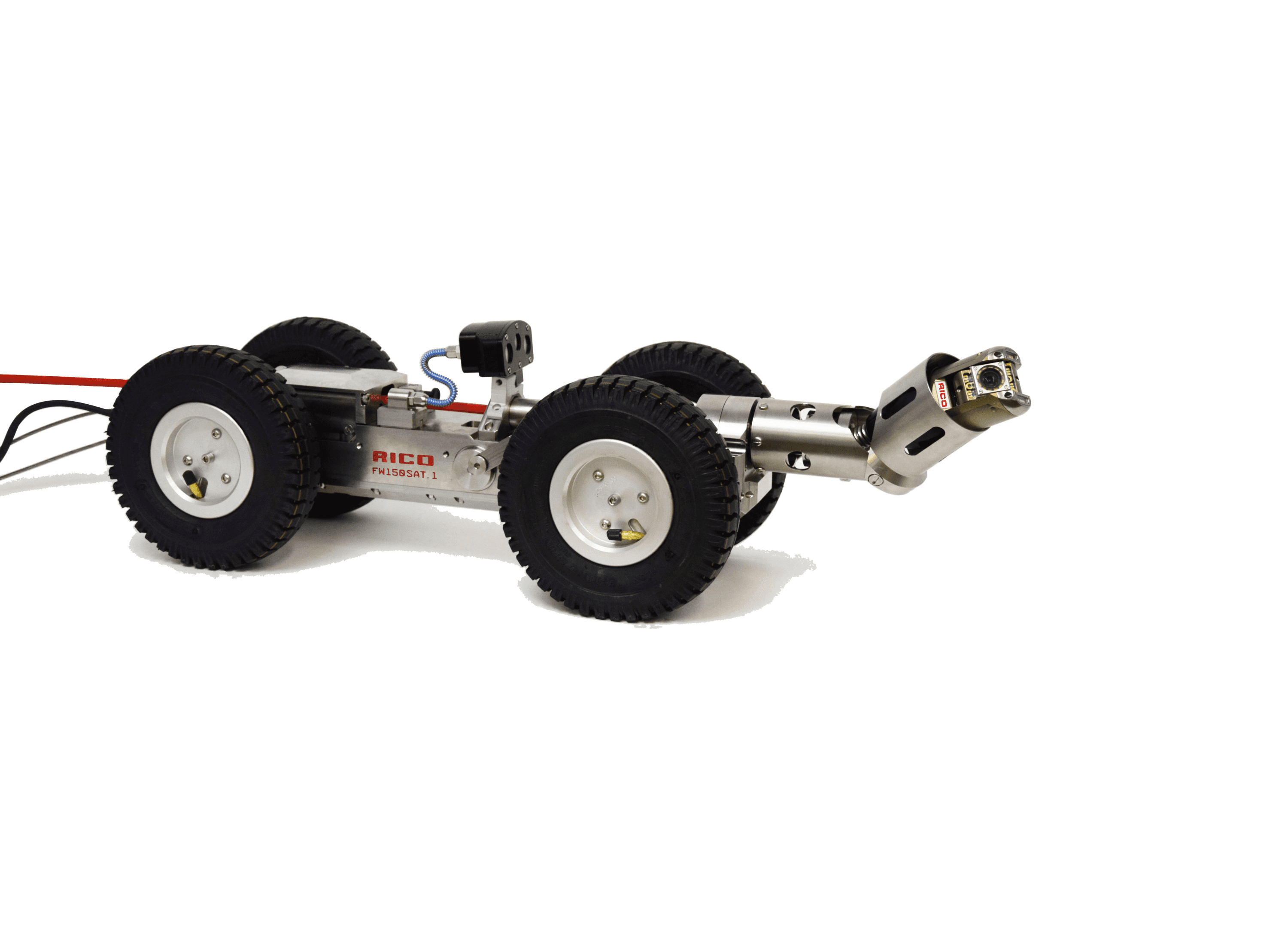

The FW150S is a robust and steerable camera carriage designed for sewer inspections starting from DN 150. With appropriate accessories, it can be utilized in pipes up to Ø 1000 mm. The carriage features an integrated longitudinal and transverse slope sensor with anti-tilt protection, automatically guiding it back to the pipe base if deviations occur. It also includes internal temperature and pressure monitoring, ensuring reliable operation. All components are built for maximum robustness and reliability. The FW150S is compatible with RICO's SR50 and SR100 camera modules. An explosion-proof certified version is available for use in hazardous areas (Zone 1).

Product Highlights

Flexible Inspection Capabilities

  • Operates in pipes from DN 150 and larger

  • Expandable up to Ø 1000 mm with accessories

  • Compatible with SR50 and SR100 camera modules

  • Operates in pipes from DN 150 and larger

  • Expandable up to Ø 1000 mm with accessories

  • Compatible with SR50 and SR100 camera modules

Advanced Stability Features

  • Integrated longitudinal and transverse slope sensors

  • Automatic guidance back to the pipe base upon deviation

  • Internal temperature and pressure monitoring

  • Integrated longitudinal and transverse slope sensors

  • Automatic guidance back to the pipe base upon deviation

  • Internal temperature and pressure monitoring

Robust and Reliable Design

  • Constructed for maximum durability

  • Suitable for use in hazardous areas (Zone 1)

  • Optional explosion-proof certified version available

  • Constructed for maximum durability

  • Suitable for use in hazardous areas (Zone 1)

  • Optional explosion-proof certified version available

Technical Data

Technical Data

Carriage Type

Steerable carriage, usable from Ø 150 mm

Drive System

4 driven, replaceable wheels

Sensors

Integrated longitudinal and transverse inclination sensor with tilt protection

Monitoring Features

Internal temperature and pressure monitoring (displayed on the monitor image)

Working Range

Usable up to Ø 1000 mm with accessories

Protection Rating

IP 68

Compatible Products

Compatible Products

SR50

Compact pan and tilt camera for versatile pipe inspections

View product

SR100|PLUS

Large pan and tilt camera for comprehensive pipe inspections

View product
