Compact pan and tilt camera for versatile pipe inspections
Product Description

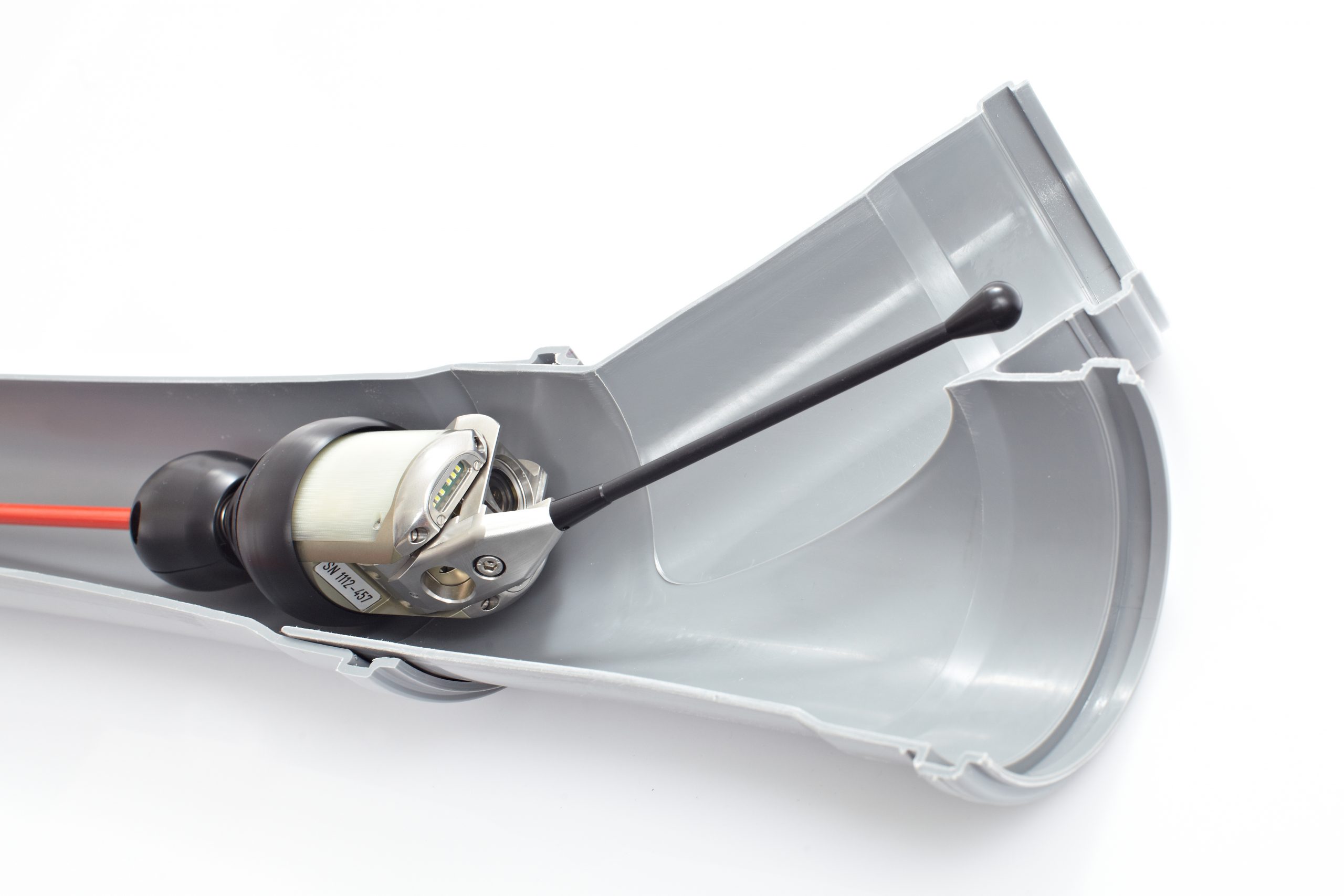

The SR50 is RICO's smallest pan and tilt camera, designed for inspecting pipes starting from 70 mm in diameter in push mode and from 100 mm in carriage mode. Its pan and tilt head allows rapid orientation in any desired viewing direction, with the capability to rotate endlessly on its own axis. The integrated swivel function enables comprehensive views, including automatic inspection of pipe joints.
Equipped with a gravity sensor, the SR50 ensures an upright image in axial view. It also features integrated parallel lasers for precise measurements. The camera is compatible with RICO's push systems, such as TINY|SMART and TINY|PC, as well as carriages like FW100CT.2 and FW150SAT.1. An explosion-proof certified version is available for use in hazardous areas (Zone 1).
Product Highlights
Flexible Inspection Capabilities
Advanced Imaging Features
Robust and Safe Design
Applicability
Usable from Ø 70 mm in push mode and from Ø 100 mm in carriage mode
Camera Features
Pan and tilt camera
Lens Protection
Lens protection made of sapphire glass
Lighting
Powerful LED lighting
Image Orientation
Upright camera image using gravity sensor
Measurement Tools
Integrated parallel lasers for measurements
Location Functionality
Integrated location transmitter
Pressure Monitoring
Integrated pressure sensor for overpressure and underpressure indication
Expandability
Expandable in push mode with a branch stick (for diverting into side channels) and various guide skids
Protection Rating
IP 68
