Lightweight and compact push-rod system for pipe inspections
Product Description

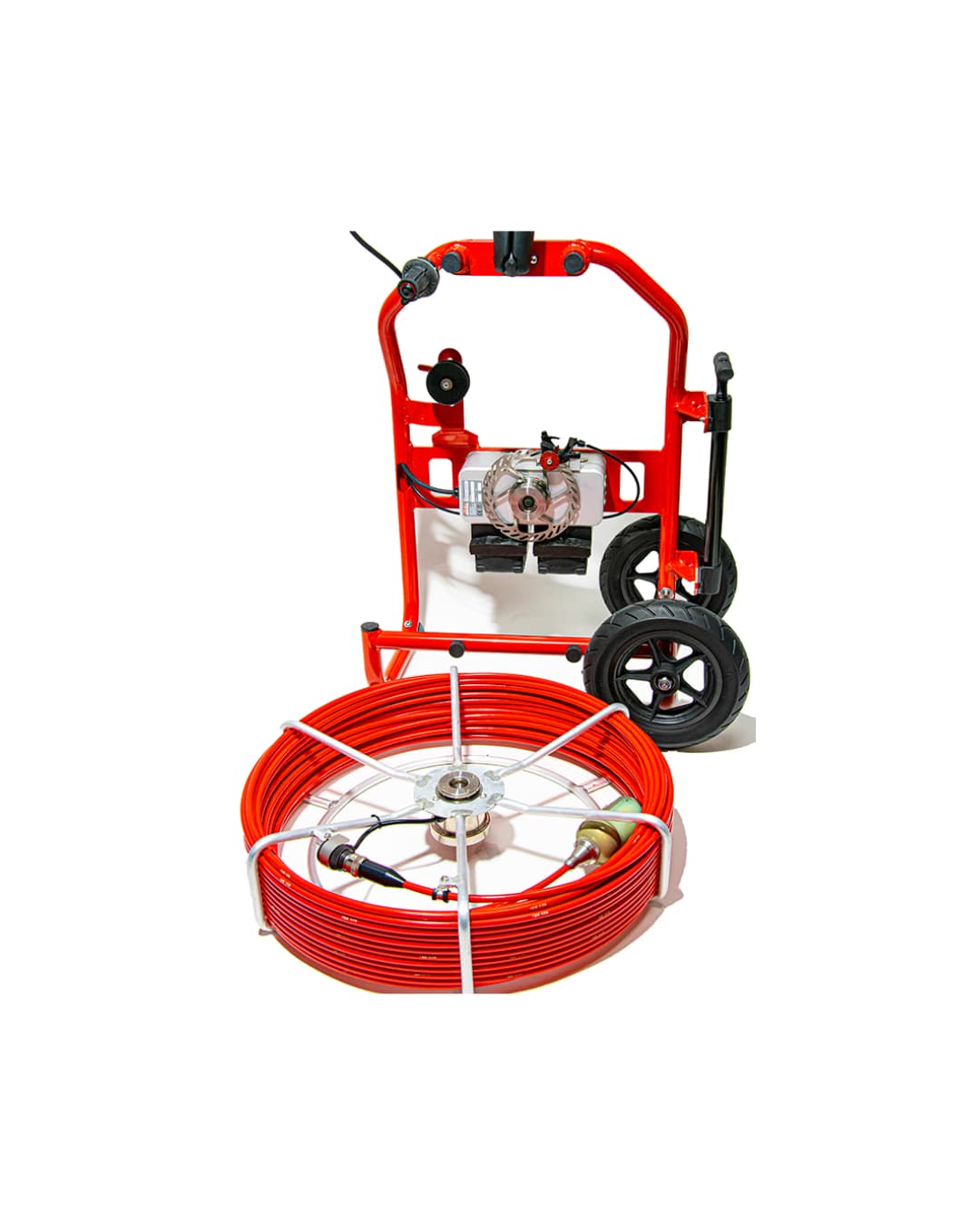

The TINY|SMART is a lightweight and compact push-rod system designed for efficient pipe inspections in and around buildings. Weighing approximately 23 kg, it is highly portable and equipped with an extendable push handle for ease of transportation. The system is suitable for inspecting sewer pipes with diameters ranging from 30 mm to 300 mm. A 12.1-inch super-bright touchscreen display ensures optimal visibility, even in direct sunlight. The integrated Linux PC allows image and video recording, as well as text documentation, providing a complete inspection solution.
Product Highlights

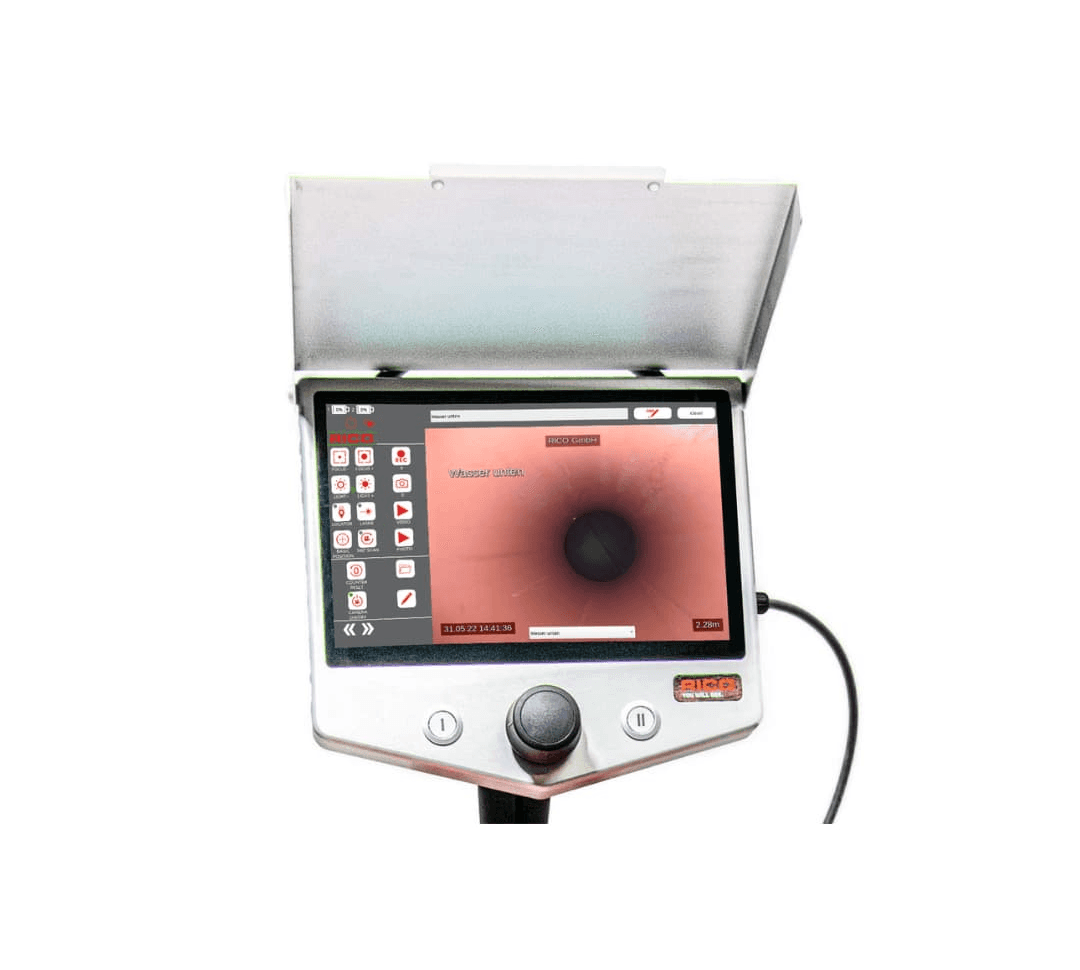

Central Control Unit

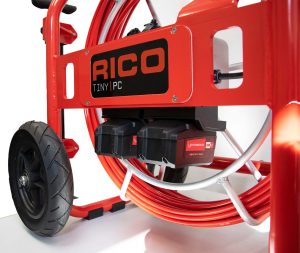

Flexible Power Options

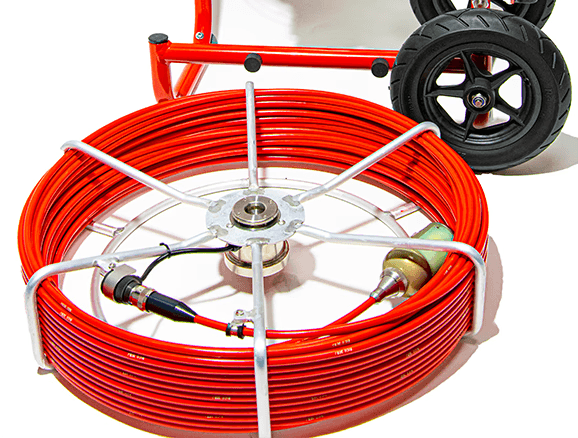

1-Click Quick Change Basket
Application Range
DN 30 to DN 300
Cable Length

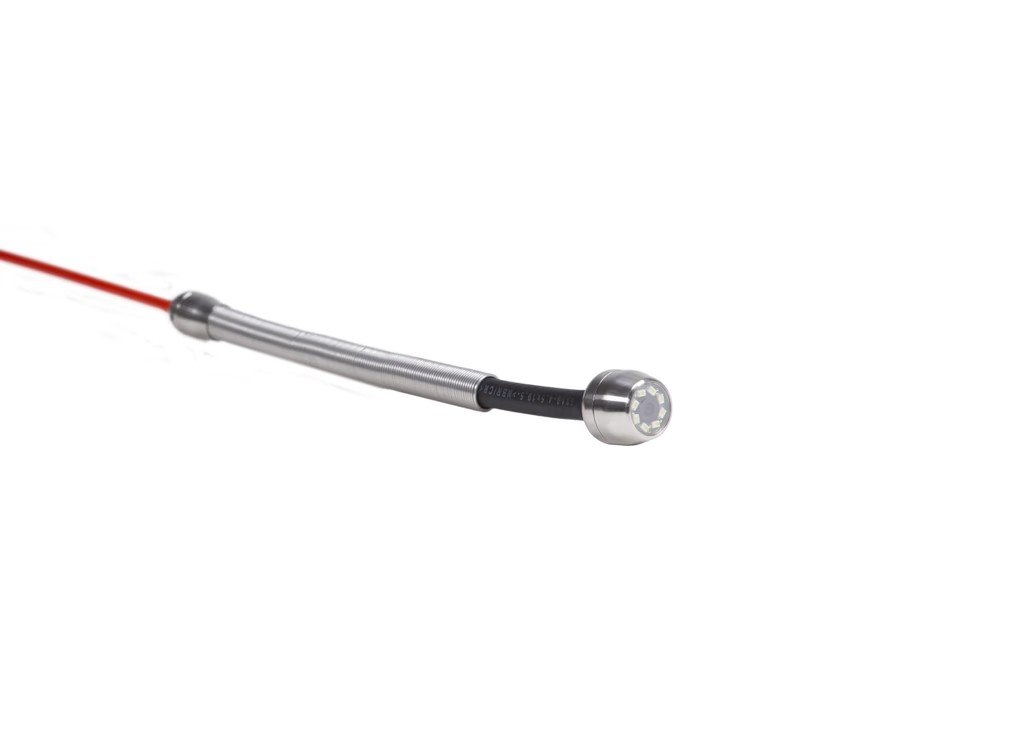

60 m, 100 m, or 22 m with MINI camera head
Material (reel)
Aluminum
Meter Counter
Yes
Basket Brake
Yes, adjustable

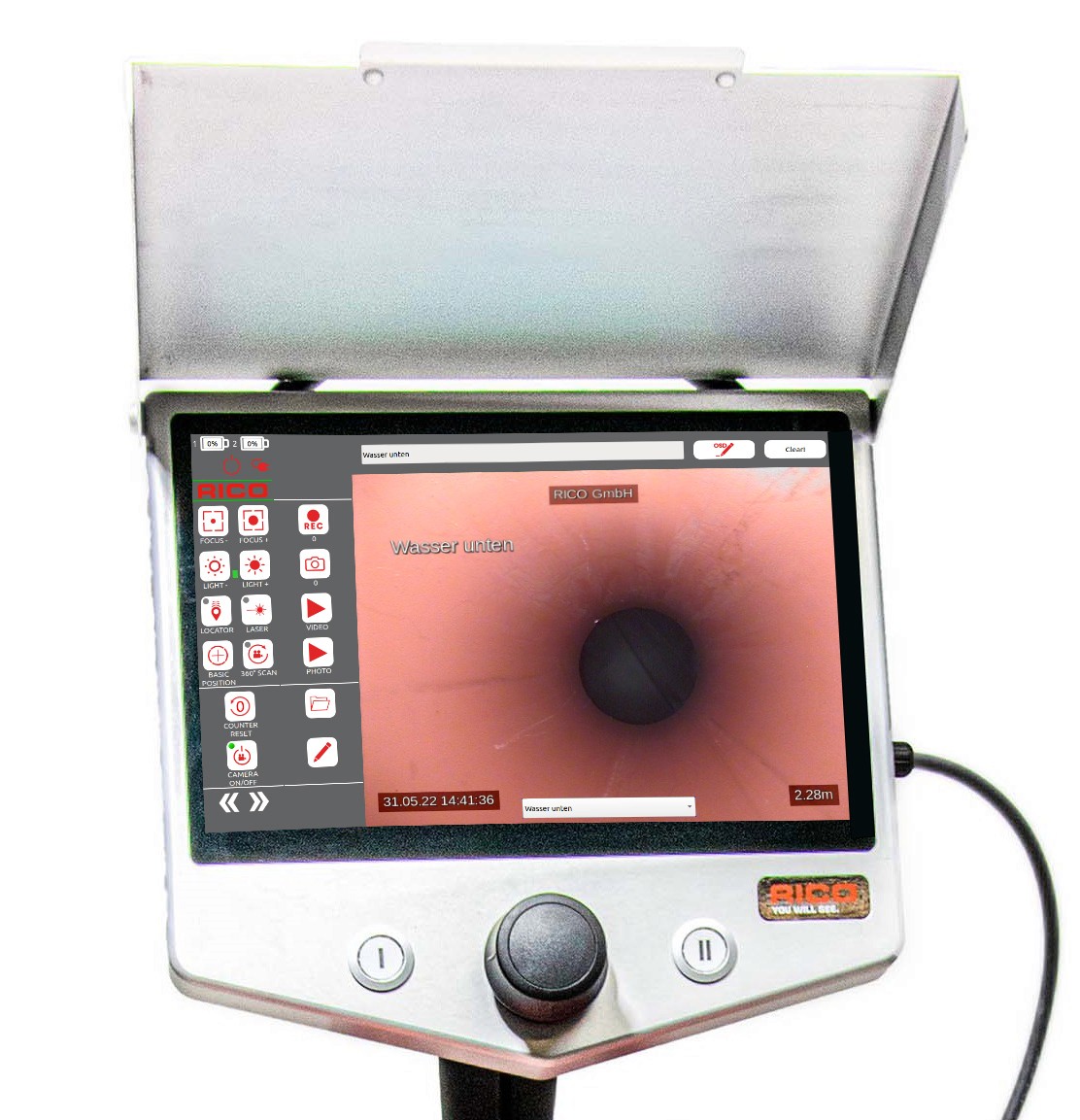

PC Monitor
30.7 cm/12.1 inches
Capacitive touchscreen (multi-touch)
Daylight-readable
Brightness: 1000 cd/m²
Resolution: 1280 x 800
Contrast: 1000:1
Processor
Linux with QuadCore 2.8 GHz
Hard Drive
256 GB SSD, for up to 300 hours of recording time
Operating System
Linux
USB Ports
2 × USB 3.0 and 1 × USB 2.0
Battery Type
Approximately 8 hours (4 hours per battery) with two standard batteries, or approximately 16 hours (8 hours per battery) with two large batteries
Battery Runtime
Available when used with an Ex-protected camera (optional)
